Vous recherchez un matériel d'occasion ?

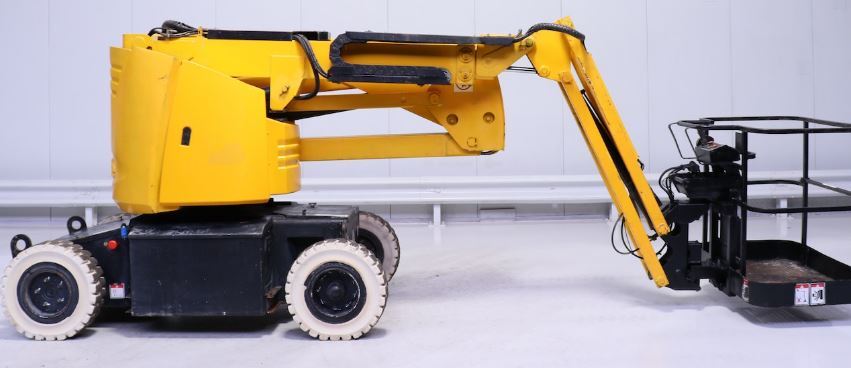

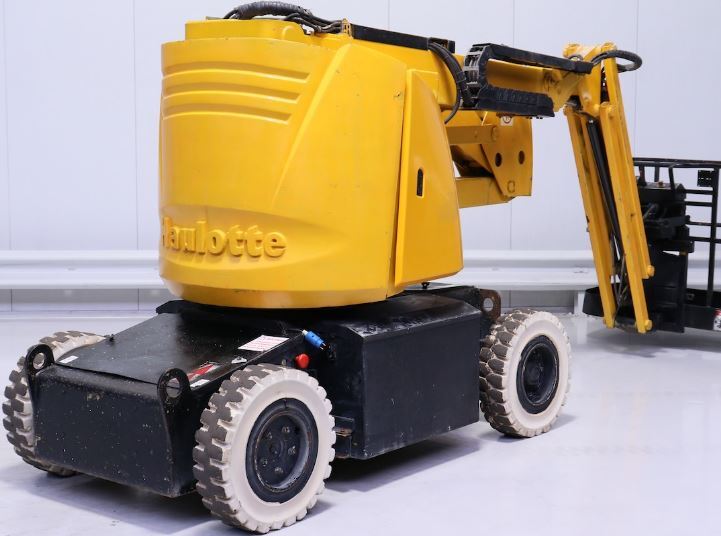

Nacelle articulée
Haulotte
HA12IP
Référence 19818
22 600 € HT
Caractéristiques
| Marque | Haulotte |
| Modèle | HA12IP |
| Référence | 19818 |
| Numéro de série | AE103880 |
| Année | 2006 |
| Première main | Oui |
| Énergie | Électrique |
| Hauteur de travail | 12 000 m |
| Poids | 5 800 kg |
| Portée horizontale | 6 700 m |
| Heures | 911,4 h |
| État | Très bon état |
| Type de traction | 2RM |
| Charge utile | 230 kg |
| Numéro de parc | 3123 |
| Hauteur de plancher | 10 000 m |
| Détails | Working height 12.0 m Platform height 10.0 m Maximum outreach 6.7 m Up and over clearance 5.25 m Capacity platform 230 kg Fly jib range of motion 140° (+70°/-70°) 140° (+70°/-70°) A Length 5.43 m B Width 1.34 m C Stowed height 1.99 m D Wheelbase 1.80 m E Ground clearance14 cm F x G Platform size 1.2 x 0.8 m Tailswing 0 0 Driving speed 0.55 mph / 2.8 mph 0.9 / 4.5 km/h Outside turning radius 9 ft 3 in 2.85 m Turret rotation 359° Hydraulic platform rotation 180° Energy 48 V (6 x 8 V Batteries 360 Ah) Gradeability 25% Solid tyres 7” x 12” Hydraulic tank 30 l Total weight 5.800 kg |
Autres informations
Working height 12.0 m
Platform height 10.0 m
Maximum outreach 6.7 m
Up and over clearance 5.25 m
Capacity platform 230 kg
Fly jib range of motion 140° (+70°/-70°) 140° (+70°/-70°)
A Length 5.43 m
B Width 1.34 m
C Stowed height 1.99 m
D Wheelbase 1.80 m
E Ground clearance14 cm
F x G Platform size 1.2 x 0.8 m
Tailswing 0 0
Driving speed 0.55 mph / 2.8 mph 0.9 / 4.5 km/h
Outside turning radius 9 ft 3 in 2.85 m
Turret rotation 359°
Hydraulic platform rotation 180°
Energy 48 V (6 x 8 V Batteries 360 Ah)
Gradeability 25%
Solid tyres 7” x 12”
Hydraulic tank 30 l
Total weight 5.800 kg
Platform height 10.0 m
Maximum outreach 6.7 m
Up and over clearance 5.25 m
Capacity platform 230 kg
Fly jib range of motion 140° (+70°/-70°) 140° (+70°/-70°)
A Length 5.43 m
B Width 1.34 m
C Stowed height 1.99 m
D Wheelbase 1.80 m
E Ground clearance14 cm
F x G Platform size 1.2 x 0.8 m
Tailswing 0 0
Driving speed 0.55 mph / 2.8 mph 0.9 / 4.5 km/h
Outside turning radius 9 ft 3 in 2.85 m
Turret rotation 359°
Hydraulic platform rotation 180°
Energy 48 V (6 x 8 V Batteries 360 Ah)
Gradeability 25%
Solid tyres 7” x 12”
Hydraulic tank 30 l
Total weight 5.800 kg
