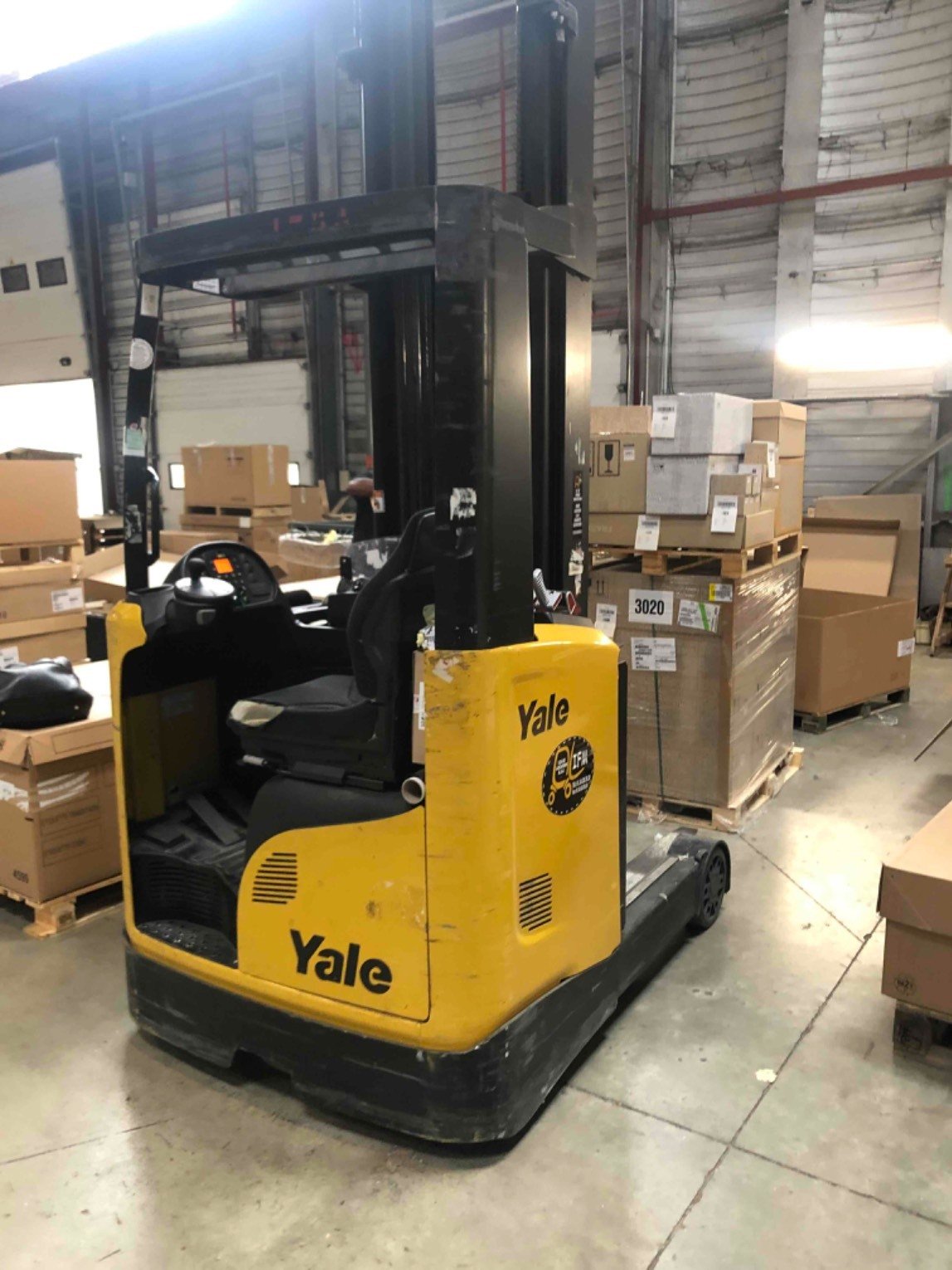

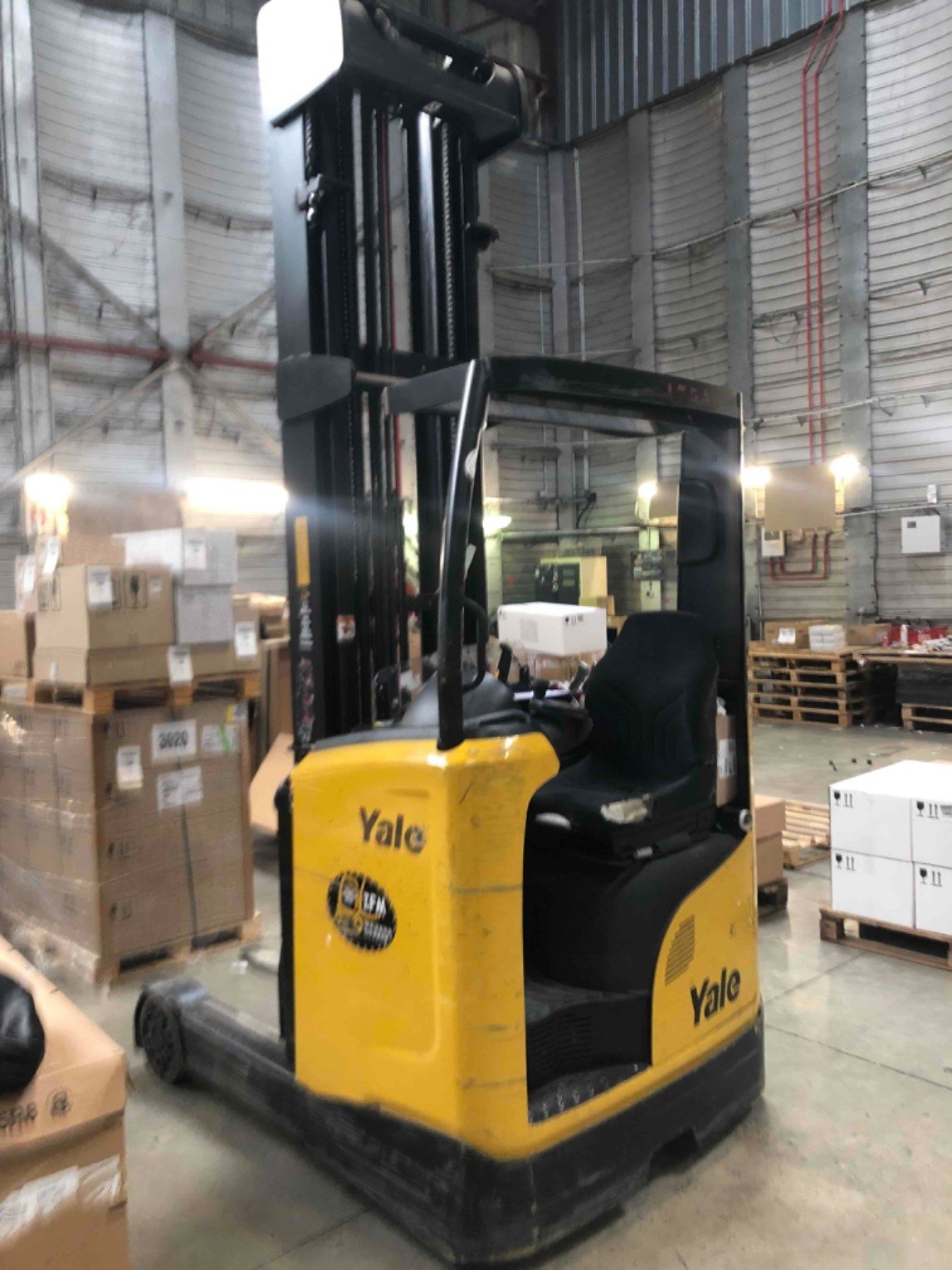

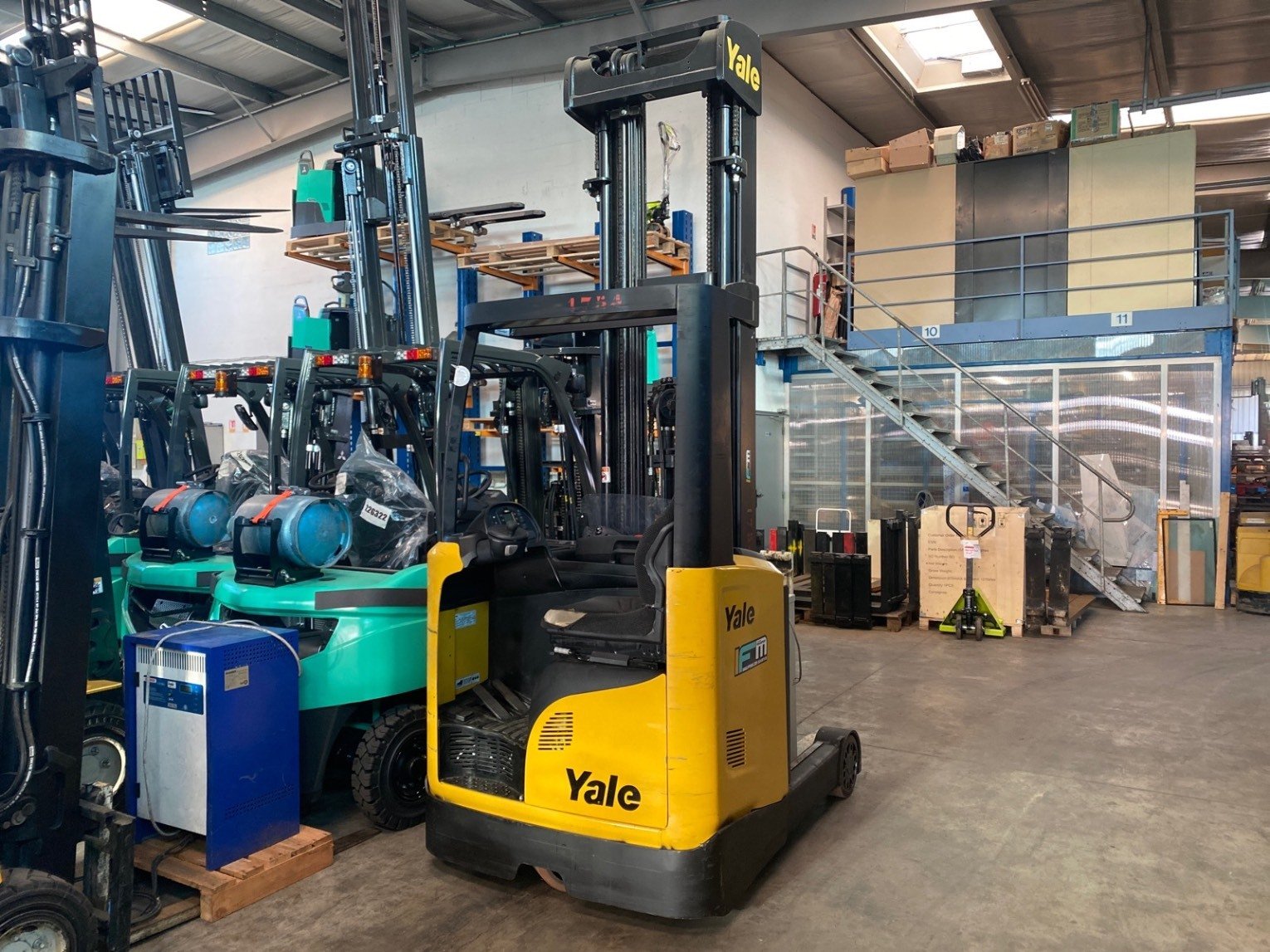

Chariot à mât rétractable Yale MR14

Autres informations

MODEL: MR141
G00310 EMEA CONFIGURATION
G02201 START: KEY SWITCH
G03601 4 LEVERS ARMREST
G05703 180/360 DEGREE STEERING DRIVER SELECT
G07201 MAX TRAVEL SPEED: 11KM/H
G09001 STANDARD ENVIRONEMENT
G10536 3FFL H3=8500 H1=3399 H2=2852 H4=9063
G12001 CARRIAGE FEM 2A B3=700MM
G13001 4 WAY HYDR: LIFT REACH SIDESHIFT TILT
G14002 TRANSPORT INFO: MAST DISMOUNTED
G15099 LESS LOAD BACK REST
G15914 FORKS 35X120X1200
G16513 BATT.COMP.DIN C 560/620AH 1223X355X784H
G16601 VERTICAL BATTERY EXTRACTION
G17042 AQUAMATIC TYPE BATTERY MIDAC
G17403 FRAME B1=1265MM B2=1265MM B4=900MM
G17599 LESS SIDE GUIDE ROLLERS
STANDARD OPERATOR COMPARTMENT
G19502 LOAD WHEEL 285X100 STD.
G19802 DRIVE WHEEL 343X140 STD.
G20401 SEAT MSG20 CLOTH
G20701 SIMULTANEOUS LIFT / REACH
G20901 FREE LIFT DAMPENING BY SENSOR
G237FR OPERATING MANUAL: FRENCH
G24954 BAT. 48V 620AH DIN C 1223X355X784 MIDAC
G25898 LESS CHARGER, WIRED PLUG NOT INCLUD
G25999 NO TYPE, LESS CHARGER
G28201 WARRANTY: STANDARD 24 MONTHS/4000 HOURS
G28399 LESS AUDIBLE ALARM ON TRAVELLING
G28501 TECHNICAL PUBLICATIONS SURCHARGE
G28838 SUPPLEMENTARY WIRE HARNESS FOR OPTIONS
G34201 SHIPPING: LAND

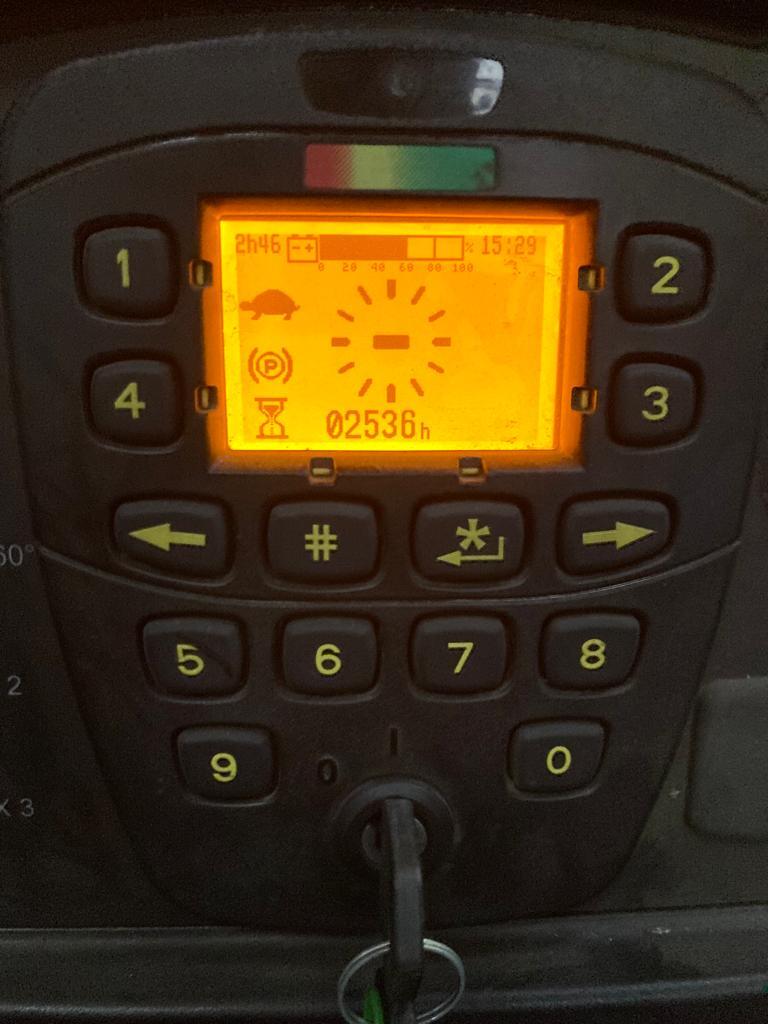

G40001 DISPLAY STANDARD
